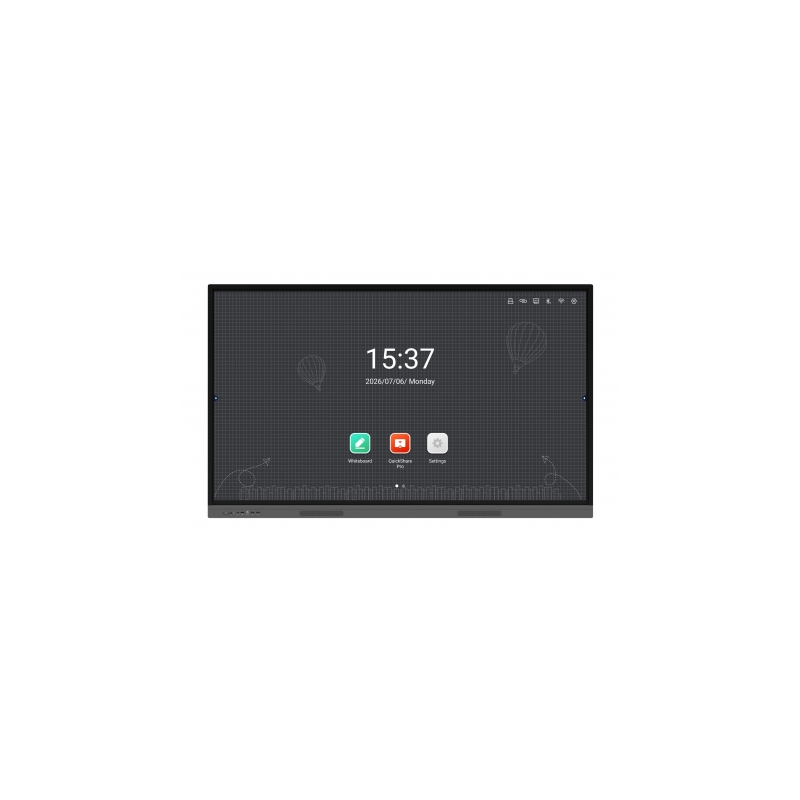

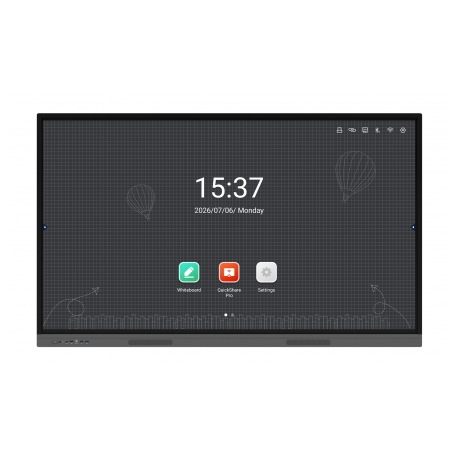

Écran interactif OKVIEW 65 pouces 4K UHD Android 14 (IWB6537)

Taille

65”

Résolution

3840（H）×2160（V）

Display Area

1429（H）×804 （V）mm

Pixel Pitch

0.372×0.372mm

Aspect Ratio

0.672916667

Refreshing Frequency

60Hz

Response Time

8ms

Response Time

≤8ms

Display Color

1.07B (10bit)

NTSC

0.72

Contrast Ratio

1100:1/1200:1/1300:1/5000:1

Viewing Angle

178°(H/V)

Back Light Unit

DLED

Brightness(typ)

300cd/m2

Life Time

≥30000hrs

Sound Channel

2

Speaker Power

2×16W

Sensing Type

IR Touch

Supported System

Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome

Android writing points

40 points touch

PC writing points

40 points touch

Min. Object Size

3mm(Over 90% touch area)

Touch Tool

Opaque objects(Finger, stylus pen, etc.)

Accuracy

±2mm(Over 90% touch area)

Writing Height

≤3mm

Writing Display

Single stylus pen with two colors

Interpolation Resolution

32767 (W) ×32767(D)

Chip solution

GK6780V100

System version

Android 14.0

Main frequency

1.5GHZ

CPU

8-core A55

GPU

Quad-core MaliG52

RAM

4GB（8GB）

ROM

32GB（128GB）

OSD

English, Simplified Chinese, French, German, Spanish, Italian, Russian, Japanese, Polish, Dutch, Swedish, Czech, Danish, Portuguese, Finnish, Traditional Chinese, Arabic, Vietnamese, Ukrainian, Indonesian, Kazakh, Thai, Malay, Bengali (India), Hindi, Nepali, Tamil, Kannada, Gujarati, Uzbek, Urdu, Turkish, Korean

Version

5.4

Operation Frequency

2.4GHz

Operation Distance

0~10m

Remark

Built-in Bluetooth

Version

802.11ax/a/b/g/n/ac

Operation Frequency

2.4GHz/5GHz

Operation Distance

0~10m

Remark

Built-in WiFi

USB

2 (Channel3.0, Android2.0）

HDMI IN

1

TOUCH USB

1

TYPE-C

1（USB Function）

Key

1

Mic in

1

SPDIF

1

Earphone OUT

1

HDMI IN(ARC)

1

HDMI IN

1

TOUCH

1

RS232

1

USB 2.0

2

LAN IN

1

HDMI OUT

1

Power input (narrow voltage)

rated200-240V~,max176-264V~ 50/60Hz

Max Power

300W

Standby Power

≤0.5W

Dimension(L × W × T)

1484.6×903.1×116mm

Dimension(package) L × T × H

1613×190×1029mm

Thickness of Machine (including bracket)

139mm

VESA

500×400mm

Wall-hanging Screw Spec

M8×20mm

Net Weight

36±1KG

Gross Weight

41.55±1KG

Power Cord

×1

Stylus Pen

×1

Wall Mount

×1（55/65 V6）（75/86 V8）

Remote Control

×1

Remote Control Battery

×1pair (not available overseas)

Quick Start

×1

Operation Temperature

0℃~40℃

Operation Humidity

10%~90%RH

Storage Temperature

-20℃~60℃

Storage Humidity

10%~90%RH

Altitude

< 5000m

OPS Module Dimension (L × W × H)

OPS Size (120mm180mm30mm)

OPS Module Dimension (L × W × H)

OPS Size (195mm180mm30mm)

OPS Module Dimension (L × W × H)

OPS Size (195mm180mm42mm)
