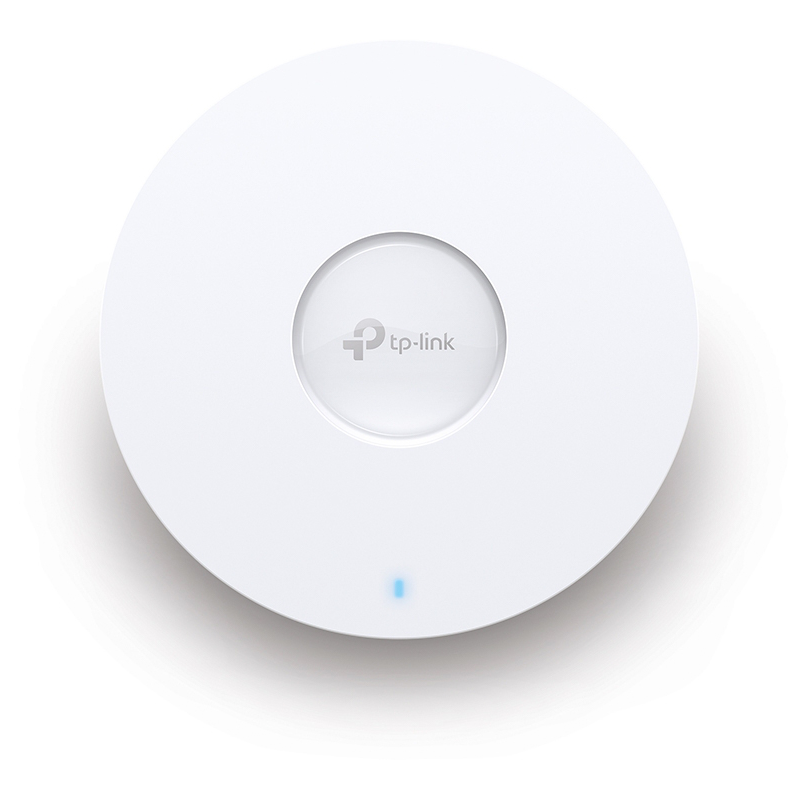

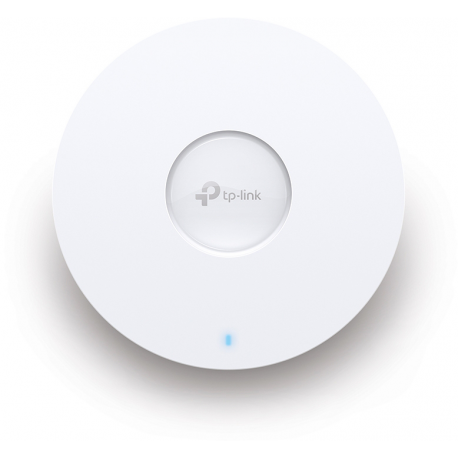

Point d'accès WiFi 6 TP-Link AX3000 plafonnier (EAP653)

CARACTERISTIQUES MATERIELLES

Interface

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Bouton

Reset

Alimentation

• 802.3at PoE+
• 12V DC (Power Adapter IS NOT included)
(EU Version: 12 V / 1.0 A DC)
• 48V Passive PoE

Consommation

• EU: 13.5 W

Dimensions (LxPxH)

160 × 160 × 33.6 mm

Type d'antenne

Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Montage

• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

Caractéristiques WiFi

Coverage

140㎡(1500 ft²)^***

Concurrent Clients

250+^**

Standards WiFi

IEEE 802.11ax/ac/n/g/b/a

Fréquence WiFi

2.4 GHz and 5 GHz

Débits Maximaux

• 5 GHz: Up to 2402 Mbps^†
• 2.4 GHz: Up to 574 Mbps^†

Fonctions WiFi

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)^‡
• Seamless Roaming ^§
• Omada Mesh^§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Sécurité WiFi

• Captive Portal Authentication^§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Puissance de transmission

• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

Administration

Omada App

Yes

Administration Centralisée

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Accès Cloud

Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Alertes Email

Yes

DEL ON/OFF

Yes

Administration de contrôle d'accès des adresses MAC

Yes

SNMP

v1, v2c, v3

Journal système local/distant

Local/Remote Syslog

SSH

Yes

Administration par interface WEB

HTTP/HTTPS

Administration Niveau 3

Yes

Administration Multi-sites

Yes

Administration VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Autres

Certification

CE, FCC, RoHS

Contenu de l'emballage

• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide

Note: DC adapter is not included in the package, and is sold separately.

Système requis

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environnement

• Operating Temperature: 0–40 ℃
• Storage Temperature: -40–70 ℃
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
