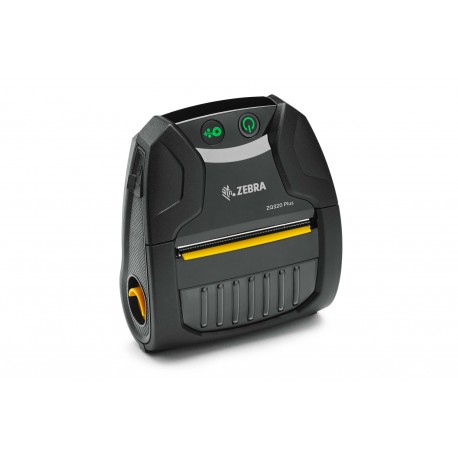

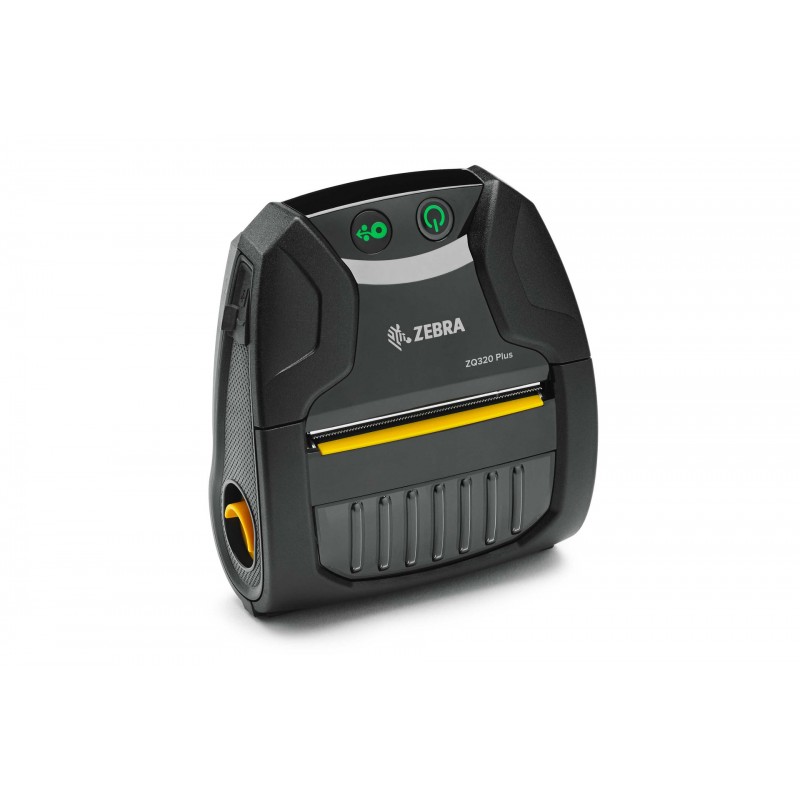

Imprimante mobile étiquettes Zebra ZQ320 Plus Thermique Directe 203 dpi Bluetooth & USB Noir (ZQ32-A0E04TE-00)

Modèle

ZQ320 Plus

Méthode d’impression

Direct Thermal

Résolution

203 dpi/8 dots mm

Vitesse d’impression maximale

Up to 4 ips (100 mm/s)

Largeur d’impression maximale

72 mm/2.83 in.

Mémoire

128MB RAM, 256MB Flash (48 MB User Available)

Système d’exploitation

Link-OS™ printer operating system

Langages de programmation

CPCL, ZPL

The ZPL programming language ensures full compatibility with many other Zebra printers

Batterie

Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Dimensions

130 mm L x 117.7 mm W x 49.5 mm H

5.12 in. L x 4.63 in. W x 1.95 in. H

Poids avec batterie

0.43 kg/0.95 lbs

Volume

757.4 cc/46.2 cubic in.

Capteurs de support

Black mark; Gap (optional)

(bar sensor is for the top side marks only)

Coupeur

Tear bar

Direction d’impression

Horizontal and vertical

Largeur du support

80 mm +0.75 mm/3.15 in. +0.02 in.

spacers available to support 76 mm +0.75 mm/3 in. +0.02 in.

Diamètre extérieur maximal du rouleau

40 mm/1.57 in.

Support de média

Drop-in fixed media width (clamshell)

Épaisseur du support

0.05334 mm / 0.0021 in. to 0.16 mm/0.0063 in.

Types de supports

Direct thermal: receipt paper, linerless labels

Longueur minimale du reçu

12.5 mm/0.49 in.

Longueur maximale du reçu

Unconstrained in line mode

Compteur d’étiquettes

Odometer

Réseau sans fil

ZebraNet™ 802.11ac radio

Optional support for TKIP and AES encryption, WPA and WPA2, 802.1x (with WPA or WPA2), TKIP, EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP, 802.11d, 802.11i, 802.11r

Bluetooth

Bluetooth 5.2 ready1

Bluetooth standard

Bluetooth 4.1 (Classic and BLE) radio (Standard)2

Security models 1-4; "Made for iPod/iPhone/iPad" certified; Key bonding

Communications filaires

USB: Client, Type C™ connector

NFC

Passive NFC tag

Interface utilisateur

LEDs

WLAN

802.11ac

Sécurité WLAN

TKIP, AES encryption, WPA, WPA2, 801.1X (WPA or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP

Fonctionnalités WLAN prises en charge

802.11r, 802.11d, 802.11i

Simultaneous WAN & BT 4.2, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), or EAP Fast Session resumption

Protocoles Internet sur WLAN

UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3, Telnet, LPD, SNMP

Indice de protection

IP54

Résistance aux chutes

1.5 m/5 ft. tested over operating temp. range

Résistance aux chutes répétées

500 free falls from 1 m/3.3 ft.

Vibrations

MIL STD 810

Homologations

FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; T V and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered and Wi-Fi certified

Rapports de codes-barres

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

Codes-barres linéaires

Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E,2 and 5 digit add-on

Codes-barres 2D

Aztec Code, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39

Polices CPCL/ZPL (évolutives)

Latin 9, Arabic, Cryillic, Hebrew, SourceCodePro, NotoMono (CJK), Hans (CJK), Thai (Angsana)

Polices CPCL (bitmap)

Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK)

Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST from Agfa Monotype Corporation

Polices ZPL

Standard fonts: 25 bitmapped, smooth-scalable (CG Triumvirate™ Bold Condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK)

Optional fonts: Downloadable bitmapped and scalable fonts, *Contains UFST from Agfa Monotype Corporation

Consommables pour imprimante

Zebra Certified Supplies

For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.

Contenu de la boîte

Printer, battery (Li-Ion 2280 mAh), belt clip, USB cable (Type C to Type A), Quick Start Guide, registration card, Safety Guide, Regulatory Guide

Logiciel Print DNA

Zebra Print DNA

Durable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve. For more information, please visit www.zebra.com/printdna

Garantie produit

1 (one) year from the date of shipment

The ZQ300 Plus Series printers are warranted against defects in workmanship and materials. For the complete warranty statement, please visit: www.zebra.com/warranty

Services recommandés

Zebra OneCare Essential and Select Services

Tests de validation

ZQ300 Plus Series printers

The printers have been tested with industry-leading applications to verify interoperability and improve overall optimization with validated terminals. Zebra Independent Software Vendor (ISV) Partners create industry leading software solutions to solve business problems. Zebra works closely with these ISVs to integrate printing and other capabilities of Zebra products. Zebra-validated applications can be found at www.zebra.com/validation
